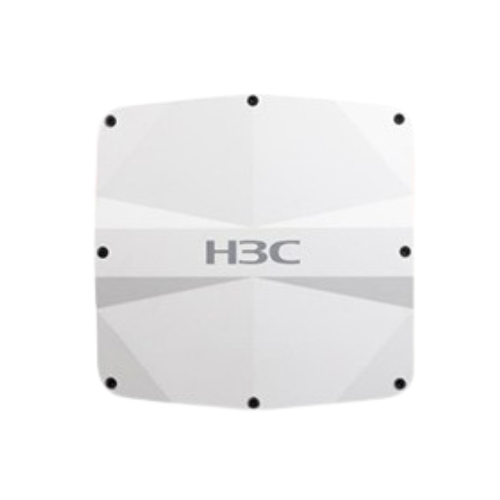

H3C WA6620X New Generation Access Point (EWP-WA6620X-FIT)

Brand
 H3C

Description
 H3C WA6620X Integrated Internal and External Antennas 4 Streams Dual Radio 802.11ax/ac/n Industrial Access Point,FIT

SKU
 EWP-WA6620X-FIT

Model
 WA6620X

Hardware Features
 Interface
 1x 10/100/1000M Ethernet, RJ-45, PoE input
 1x 10/100/1000M Ethernet, RJ-45, PoE output
 1x 1000M optical port, SFP

 Console port : 1x Management console port (RJ-45)
 PoE input : 1x 10/100/1000M Ethernet, 802.3at/af
 PoE output : 1x 10/100/1000M Ethernet, 802.3af
 Local power supply : PoE Injector Power Supply (Optional)
 Antenna Type : Built-in directional antenna (default)
                       Support extended external antenna
 Antenna Gain : 5GHz peak gain: 11dBi
                      2.4GHz peak gain: 11dBi
                      Note: The equivalent antenna gain is 3dBi in 5GHz and 3dBi in 2.4GHz
 Built-in IoT Module : BLE5.1
 External IoT Module : RFID/Zigbee

 Frequency bands
 2.400to2.4835GHzISM
 5.150to5.250GHzU-NII-1
 5.250to5.350GHzU-NII-2A
 5.470to5.725GHzU-NII-2C
 5.725to5.850GHzU-NII-3/ISM
 Note: The available bands and channels are dependent on the configured regulatory domain (country)

 Modulation technology
 OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
 DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

 Maximum transmit power
 5GHz: 27 dBm
 2.4GHz: 30 dBm
 Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations

 Adjustable power granularity : 1 dBm
 Installation : Pole mounting/Wall mounting
 LED : Alternating flashing mode, orange/green/blue for different working states
 Protection class : IP68
                         Note: Even when used with external antenna
 Overall power consumption : luding PSE)
                                        16W (excluding PSE)
                                        Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues.
 Safety Standards : IEC/EN 62368-1, GB 4943.1, SRRC
 Radio Standards : ETSI EN 300 328
                         ETSI EN 301 893
                         ETSI EN 300 440
                         FCC Part 15E
 RoHS Standards : DIRECTIVE 2011/65/EU
                        (EU) 2015/863
 Health Standards : EN 50385:2017
                          EN IEC 62311:2020
 MTBF : >875378 hours

Software specifications
 Basic information : Outdoor, dual-radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax

 Frequency and MIMO
 Dual-radio mode
 5GHz, 2×2:2, 1.2Gbps
 2.4GHz, 2×2:2, 0.575Gbps

 Dual-radio mode
 5.8GHz, 2×2:2, 1.2Gbps
 5.2GHz, 2×2:2, 1.2Gbps

 Compliance and bandwidth
 5GHz, 802.11a/n/ac/ax
 20MHz/40MHz/80MHz
 2.4GHz, 802.11b/g/n/ax
 20MHz/40MHz

 Maximum transmission speed
 1.775 Gbps
 (2x2 80 MHz on 5 GHz, 2x2 40 MHz on 2.4 GHz)
 2.4 Gbps
 (2x2 80 MHz on 5 GHz, 2x2 80 MHz on 5 GHz)

 Maximum number of clients
 1024
 (512 on 5 GHz, 512 on 2.4 GHz)
 Note: the actual number of users varies according to the environment

 Maximum number of SSIDs for each radio
 16

 Wi-Fi Certified
 I Wi-Fi Alliance:Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise, Personal (SAE), Enhanced Open (OWE)

Dimensions (W × D × H)
 225 250mm x 250mm x 79.5mm mm X 225mm X 46mm

Weight
 1.8 kg

Warranty
 5 Years
