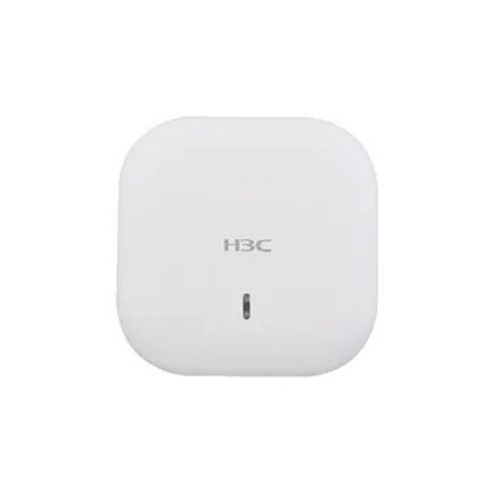

H3C WA6528i New Generation Access Point (EWP-WA6528i-FIT)

Brand
 H3C

Description
 H3C WA6528i Internal Antennas 8 Streams Dual Radio 802.11ax/ac/n Access Point,FIT

SKU
 EWP-WA6528i-FIT

Model
 WA6528i

Hardware Features
 Interface
 1x 100/1000M/2.5G/5G Multigigabit Ethernet, RJ-45, PoE input
 1x 100/1000M Multigigabit Ethernet, RJ-45, PoE output

 Console port : 1x Management console port (RJ-45)
 USB port : 1(2.0) at 2.5W
 PoE input : 1x 100/1000M/2.5G Multigigabit Ethernet, 802.3at/af
 PoE output : 1x 100/1000M Multigigabit Ethernet, 802.3af
 Local power supply : 54V DC
 Antenna Type : Built-in omni-directional antenna
 Antenna Gain : 5GHz peak gain: 6dBi
                     2.4GHz peak gain: 4dBi
                     Note: The equivalent antenna gain is 5dBi in 5GHz and 3dBi in 2.4GHz
 Built-in IoT Module : BLE5.1
 External IoT Module : RFID/Zigbee

 Frequency bands
 2.400to2.4835GHzISM
 5.150to5.250GHzU-NII-1
 5.250to5.350GHzU-NII-2A
 5.470to5.725GHzU-NII-2C
 5.725to5.850GHzU-NII-3/ISM
 Note: The available bands and channels are dependent on the configured regulatory domain (country)

 Modulation technology
 OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
 DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

Maximum transmit power
 5GHz: 23dBm
 2.4GHz: 23dBm
 Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations

 Adjustable power granularity : 1 dBm
 Reset/restoration to factory default : support
 Kensington Lock : support
 Installation : wall mounting/ceiling mounting
 LED : Alternating flashing mode, orange/green/blue for different working states
 Protection class : IP42
 Overall power consumption : 42.5W (including PSE and USB)
                                        25W (excluding PSE and USB)
                                        Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues.
 Safety Standards : IEC/EN 62368-1, GB 4943.1, SRRC
 MTBF (25°C) : 212 years

Software specifications
 Basic functions : Indoor, triple radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax

 Frequency and MIMO
 5GHz, 4×4:4, 4.8Gbps
 2.4GHz, 4×4:4, 1.15Gbps
 5GHz/2.4GHz, 1×1:1, Only for scanning

 Compliance and bandwidth
 5GHz, 802.11a/n/ac/ax
 20MHz/40MHz/80MHz/160MHz (Scanning radio does not support 160MHz）
 2.4GHz, 802.11b/g/n/ax
 20MHz/40MHz

 Maximum transmission speed
 5.95Gbps
 (4x4 160MHz on 5GHz, and 4x4 40MHz on 2.4GHz)

 Maximum number of clients
 1024
 (512 on 5GHz, and 512 on 2.4GHz)
 Note: the actual number of users varies according to the environment

 Maximum number of SSIDs for each radio
 16

 Wi-Fi Certified
 I Wi-Fi Alliance:Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise, Personal (SAE), Enhanced Open (OWE)

Dimensions (W × D × H)
 225mm X 225mm X 40mm

Weight
 1.05 Kg

Warranty
 5 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*
