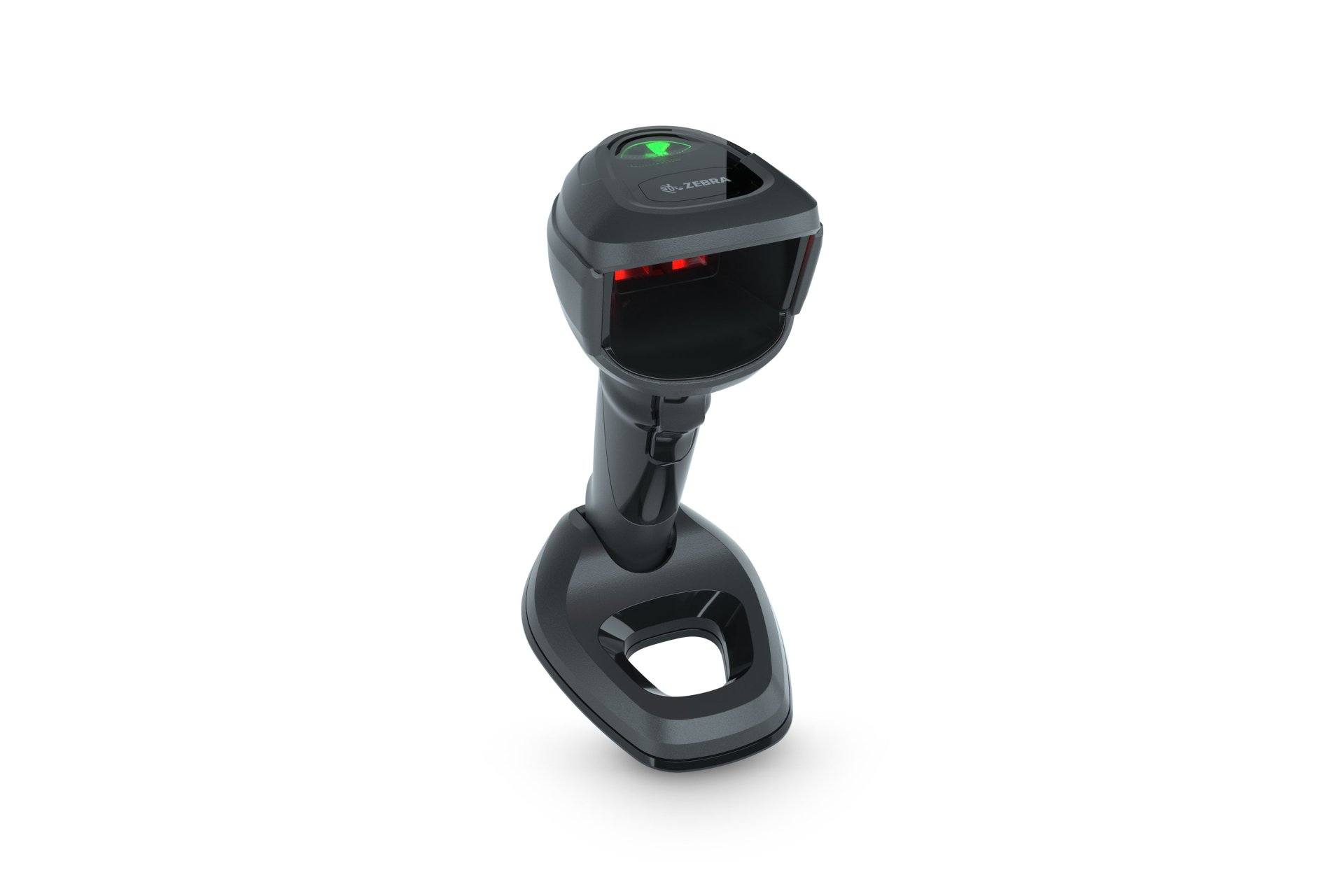

Zebra Handheld Imagers Scanner (DS9908-SR) BLACK USB KIT (DS9908-SR4U2100AZW)

Brand
Zebra

Description
 Zebra Handheld Imagers Scanner (DS9908-SR) BLACK USB KIT

SKU
 DS9908-SR4U2100AZW

Specifications
 Performance Characteristics
 Swipe Speed (Hands-Free)        Up to 240 in./610 cm per second for 13 mil UPC in optimized mode
 Light Source                           Aiming Pattern: Circular 617nm Amber LED
 Illumination                             (2) 645nm Red LEDs
 Imager Field of View                48° H x 30.6° V Nominal
 Image Sensor                          1280 x 800 pixels
 Minimum Print Contrast             16% minimum reflective difference
 Skew Tolerance                       +/- 60°
 Pitch Tolerance                       +/- 60°
 Roll Tolerance                         0° - 360°

User Environment
 Operating Temperature            32.0° to 122.0° F / 0.0° to 50.0° C
 Storage Temperature               -40.0° to 158.0° F / -40.0° to 70.0° C
 Humidity                                5% to 95% RH, non-condensing
 Drop Specification                   DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
                                             DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete
 Tumble Specification                Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler3
 Environmental Sealing              DS9908: IP52, DS9908R: IP42
 Electrostatic Discharge (ESD)      ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Regulatory
 Environmental                         EN 50581:2012
 Electrical Safety                       IEC 62368-1 (ed.2)
                                             EN 62368-1:2014/AC:2015
 LED Safety                              IEC 62471:2006 (Ed.1.0)
                                             EN 62471:2008 (LED)
 EMI/RFI                                   EN 55032:2012/AC:2013 (Class B)
                                             EN 55032:2015/AC:2016 (Class B)
                                             EN 55024:2010
                                             EN 55024:2010/A1:2015
                                             EN 55035:2017
                                             EN 61000-3-2:2014 (Class A)
                                             EN 61000-3-3:2013
                                             47 CFR Part 15, Subpart B, Class B
                                             ICES-003 Issue 6, Class B

Imaging Characteristics
 Graphics Format Support          Images can be exported as Bitmap, JPEG or TIFF
 Image Quality (A4 Document)    116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./ 20.3 cm

Supported Host Interfaces
 USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support
 Supports over 90 international keyboards

Input Voltage Range
 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply

Warranty
 Scanner: 5 Years
