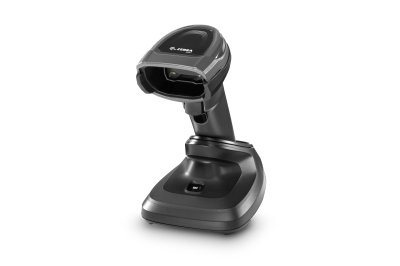

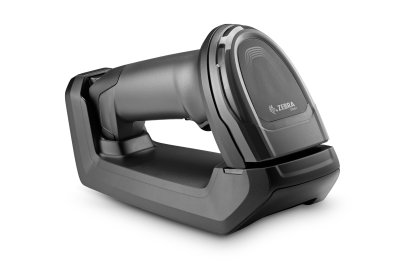

Zebra Handheld Imagers Scanner (DS8178-SR) BLACK FIPS STANDARD CRADLE USB KIT (DS8178-SR7U2100SFW)

Brand
Zebra

Description
 Zebra Handheld Imagers Scanner (DS8178-SR) BLACK FIPS STANDARD CRADLE USB KIT

SKU
 DS8178-SR7U2100SFW

Specifications
 Performance Characteristics
 Light Source                           Aiming Pattern; circular 617nm amber LED
 Illumination                             (2) 645nm red LEDs
 Imager Field of View                48° H x 37° V nominal
 Image Sensor                          1,280 x 960 pixels
 Minimum Print Contrast             16% minimum reflective difference
 Skew/Pitch Roll Tolerance         +/- 60°; +/- 60°; 0-360°

User Environment
 Operating Temperature            32° to 122° F/0° to 50° C
 Charging Temperature              32° to 104° F/0° to 40° C
 Storage Temperature               -40° to 158° F/-40° to 70° C
 Humidity                                5% to 95% RH, non-condensing
 Drop Specification                   Designed to withstand multiple drops at 6.0 ft/1.8 m to concrete
 Tumble Specification                Designed to withstand 2,000 1.5 ft./0.5 m tumbles3
 Environmental Sealing              IP52
 Electrostatic Discharge (ESD)      DS8108/DS8178 and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Radio Specifications
 Bluetooth Radio                      Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles
 Adjustable Bluetooth Power      Class 1: Output power adjustable down from 4 dBm in 8 Steps
                                           Class 2: Output power adjustable down from 2 dBm in 8 Steps

Regulatory
 Electrical Safety                       EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
 Environmental                         RoHS EN 50581
 LED Safety                              IEC 62471
 Voltage Fluctuation and Flicker   EN 61000-3-3
 Digital Apparatus                     ICES-003 Issue 6, Class B

Imaging Characteristics
 Graphics Format                      Images can be exported as Bitmap, JPEG or TIFF
 Image Quality                         109 PPI on an A4 document
 Minimum Element Resolution      Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 6.0 mil; QR Code - 6.0 mil; PDF - 5.0 mil

Supported Host Interfaces
 USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support
 Supports over 90 international keyboards

Input Voltage Range
 DS8108: 4.5 to 5.5VDC
 DS8178 Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC

Power
 PowerPrecision+ Li-Ion Battery
 Capacity: 2500 mAh
 Number of scans from full charge: 65,0004
 Charge time from empty to full: 9 hours over USB
 Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB

 PowerCap Capacitor
 Capacity: 440 F
 Number of scans from full charge: 2,0004
 Number of scans from Ready-To-Scan at 20% of full charge (default): 2004
 Number of scans from Ready-To-Scan at 15% of full
 charge: 1004
 Charge time from empty to full: 30 min over USB
 Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 90 sec over USB
 Charge time from audible low charge warning to Ready-to-Scan at 15% of full charge: 35 sec over USB

Warranty
 Scanner: 3 Years
