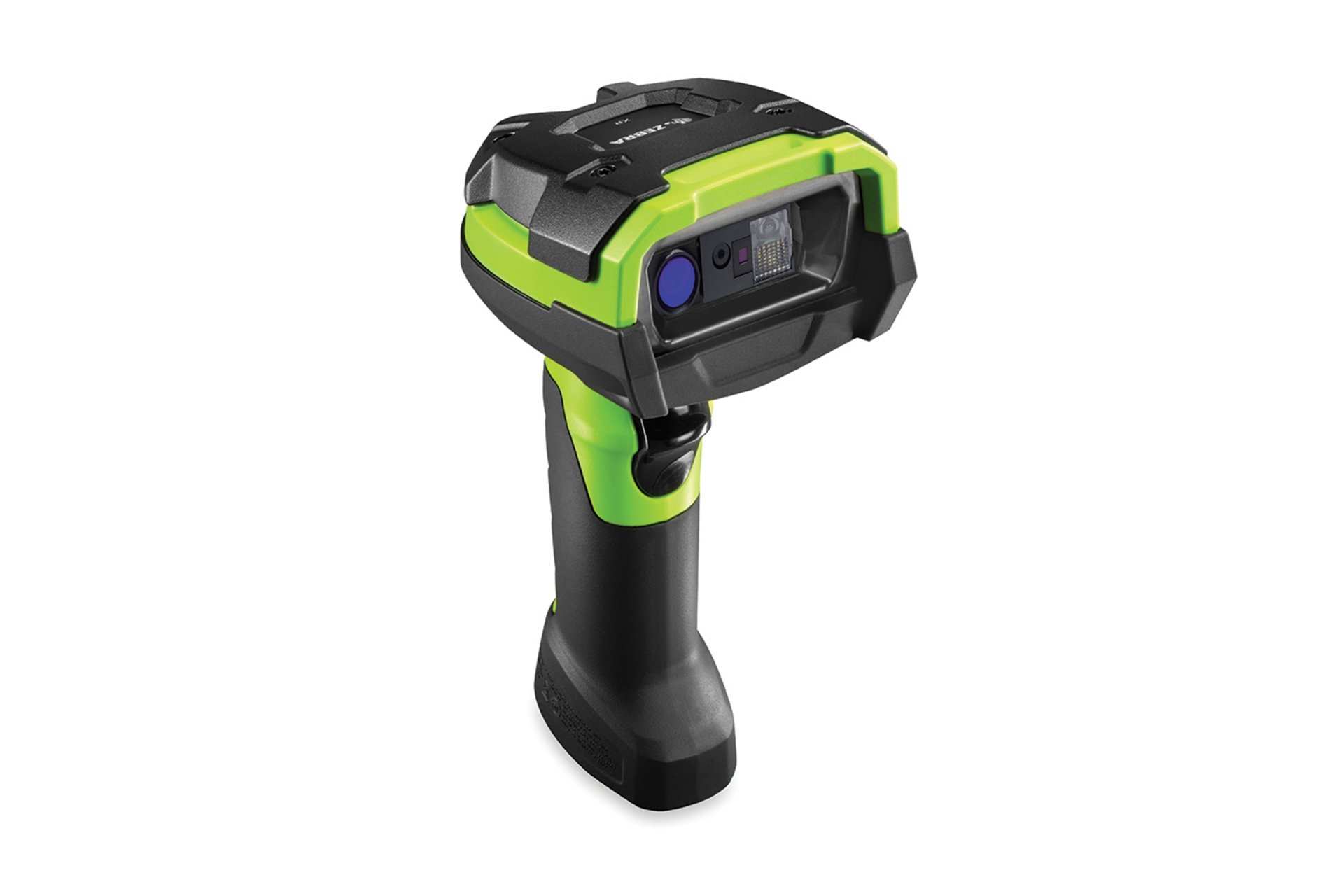

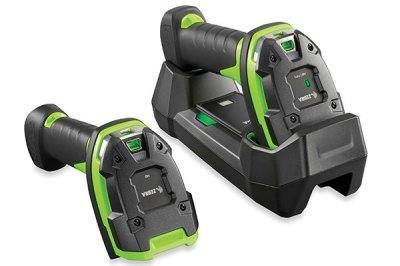

Zebra Ultra-Rugged Scanner (LI3608-SR) RUGGED GREEN VIBRATION MOTOR USB KIT (LI3608-SR3U4600VZW)

Brand
Zebra

Description
 Zebra Ultra-Rugged Scanner (LI3608-SR) RUGGED GREEN VIBRATION MOTOR USB KIT

SKU
 LI3608-SR3U4600VZW

Specifications
 Performance Characteristics
 Scans per Full Charge               140,000+
 Illumination                             Two (2) 617nm Amber LEDs
 Aimer                                    655 nm laser
 Imager Field of View                35°
 Image Sensor                          1,500 pixels
 Minimum Print Contrast             15% minimum reflective difference
 Types Skew/Pitch/Roll              Skew: ± 65°
                                             Pitch: ± 65°
                                             Roll: ± 45°

User Environment
 Operating Temp.                      Corded: -22° F to 122° F/-30° C to 50° C
                                             Cordless: -4° F to 122° F/-20° C to 50° C
 Storage Temp.                          -40° F to 158° F/-40° C to 70° C
 Humidity                                 5% to 95% non-condensing
 Tumble Specification                  7500 3.3 ft./1.0 m tumbles
 Sealing                                    Scanner: IP65 and IP68 per applicable IEC sealing
                                               specifications
                                               FLB cradle: IP65
 ESD                                         Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Wireless Connectivity
 Bluetooth Radio                         Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles
 Data Rate                                 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
                                               1 Mbit/s (0.27 Mbit/s) for Low Energy
 Radio Range                             Direct line of sight in open air: Class 1: Minimum
                                               300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

Regulatory
 Electrical Safety                         EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 +
                                               A1: 2009 + A2: 2013
                                               US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
 Environmental                            RoHS EN 50581: 2012
 LED Safety                                 International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED)

Supported Host Interfaces
 USB, RS232, Keyboard Wedge
 Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP

Input Voltage Range
 Host powered: 4.5 VDC min., 5.5 VDC max.
 External power supply: 11.4 VDC min., 12.6 VDC max.

Operating Current
 LI3608 (corded): 170 mA (RMS typical)

Standby Current
 LI3608 (corded): 40 mA (RMS typical)

Battery
 PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

Warranty
 Scanner: 3 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*
