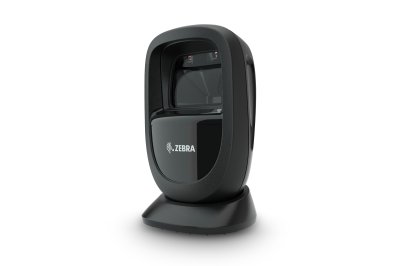

Zebra Handheld Scanner (DS9308-SR) BLACK USB KIT (DS9308-SR4U2100AZW)

Brand
Zebra

Description
 Zebra Handheld Scanner (DS9308-SR) BLACK USB KIT

SKU
 DS9308-SR4U2100AZW

Specifications
 Performance Characteristics
 Swipe Speed (Presentation)       Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
 Light Source                           Aiming pattern: circular 617 nm amber LED
 Illumination                             660 nm Hyper Red LED
 Imager Field of View                52° H x 33° V nominal
 Image Sensor                          1280 x 800 pixels
 Minimum Print Contrast             15%
 Skew Tolerance                       +/-60°
 Pitch Tolerance                       +/-60°
 Roll Tolerance                         360°

User Environment
 Operating Temp.                     +32.0F to +122.0F (0.0C to +50.0C)
 Storage Temp.                         -40.0F to +158.0F (-40.0C to +70.0C)
 Humidity                                5% to 95% RH, non-condensing
 Drop Specification                   Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
 Tumble Specification                Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler
 Sealing                                  IP52
 Electrostatic Discharge (ESD)     ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
 Ambient Light Immunity            0 to 10,000 foot-candles/0 to 107,700 Lux

Regulatory
 Environmental                         EN 50581:2012
                                             RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000
                                             REACH 1907/2006
Electrical Safety                        IEC 62368-1 2nd ed.
                                             EN 62368-1:2014/AC:2015
                                             UL/IEC 60950-1, 2nd ed.
                                             CAN/CSA C22.2 No.60950-1, 2nd ed.
 LED Safety                              IEC 62471:2006 (Ed.1.0)
                                             EN 62471:2008 (LED)
 EMI/RFI                                  FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS

Imaging Characteristics
 Graphics Format Support          Images can be exported as bitmap, JPEG or TIFF
 Image Quality                         109 PPI on a 4.1 in. x 5.8 in./A6 sized document

Supported Host Interfaces
 USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard Support
 Supports over 90 international keyboards

Input Voltage Range
 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply

Operating Current at Nominal Voltage (5.0V)
 Presentation mode: 335mA
 Trigger mode: 350mA

Standby Current (Idle) at Nominal Voltage (5.0V)
 Presentation mode: 135mA
 Trigger mode: 75mA

TAA Compliance
 Trade Agreement Act Compliant (optional on select configurations)

Electronic Article Surveillance
 Compatible with Checkpoint EAS deactivation system

User Indicators
 Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)

Warranty
 Scanner: 3 Years
