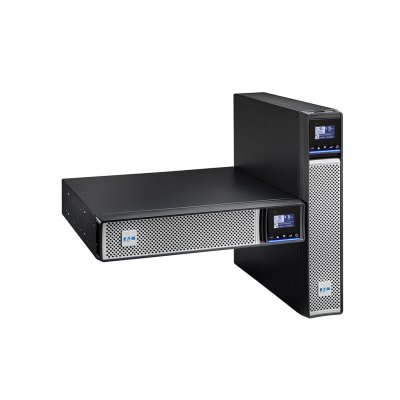

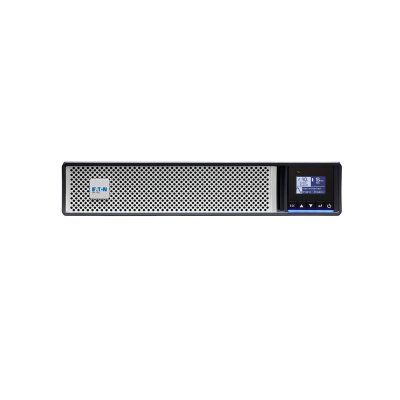

EATON 5PX 1500i RT2U G2 (9210-63060)

Brand
 Eaton

Description
 EATON 5PX 1500i RT2U G2 (9210-63060)

SKU
 9210-63060

Format
 RT2U

Capacity (VA/Watts)
 1500VA / 1500W

Technology
 Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)

Electrical characteristics
 Input voltage range without using batteries
 160V-294V (adjustable to 150V-294V)

 Input frequency range without using batteries
 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode

 Output voltage
 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 Hz (autosensing)

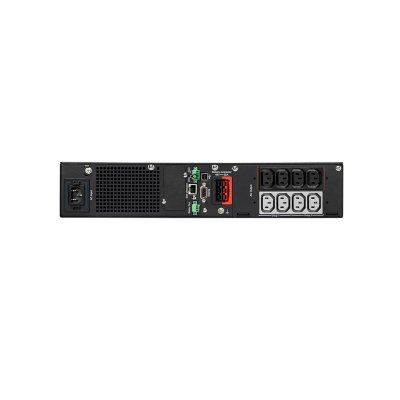

Connections
 Input : IEC C14 (10A)
 Outputs : 8 x IEC C13 (10A)
 Remote controlled sockets : 2 groups of 2 x IEC C13 (10A)
 Additional outputs with HS MBP : 4 FR / Schuko sockets or 3 BS sockets or 6 IEC 10A sockets or terminal blocks (HW version)
 Additional outputs with FlexPDU : 8 FR / Schuko sockets or 6 BS sockets or 12 IEC 10A sockets

Interfaces
 Communication ports
 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay

 Communication slot
 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards

Operating conditions, standards and approvals
 Noise level : <40 dB @ typical load
 Safety : IEC/EN 62040-1, UL1778, CSA22.2
 EMC, Performance : IEC/EN 62040-2, FCC Class B, CISPR22 class B
 Approvals : CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm

Batteries
 Typical backup times ** : 800W
 Battery management : ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

Warranty
 3 Years On-Site
