TP-Link AB17870 - Omada 4G+ Cat6 AX3000 Gigabit VPN Router (AB17870)

Brand
 TP-Link

Description
 TP-Link AB17870 - Omada 4G+ Cat6 AX3000 Gigabit VPN Router

SKU
 AB17870

Model
 AB17870

4G
 LTE Band of EU :
 - 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
 - 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
 - 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)

 Network Type
 Carrier Aggregation :
 B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
 B5+B5/B7/B38/B40/B41
 B7+B7/B8/B20/B28/B32
 B8+B32/B38/B40/B41
 B20+B32/B38/B40
 B28+B32/B38/B40/B41
 B38+B38
 B40+B40
 B41+B41

 SIM Type
  1x Nano SIM Card

 Frequency
  Downlink: 300 Mbps;
  Uplink: 50 Mbps

Hardware Features
 Interface
  1 Gigabit SFP WAN/LAN Port
  1 Gigabit WAN Port
  4 Gigabit LAN/WAN Ports

 Network Media
 - 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
 - 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
 - 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

 Wi-Fi Frequency & Signal Rate
  2.4 GHz: 574 Mbps
  5 GHz: 2402 Mbps (HE160)

 Antenna
 - Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
 - LTE: Two 4.0dBi omnidirectional detachable antennas

 Mounting
 Desktop/Wall-Mounting

 Max Power Consumption
 EU: 17.3W

 Button
  Reset Button

  Flash
   128 MB NAND

 DRAM
  512 MB DDR4

  LED
   SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Certifications
 CE, FCC, RoHS

System Requirements
 Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
 MAC OS, NetWare, UNIX or Linux

Power
 12VDC / 2A Power Adapter

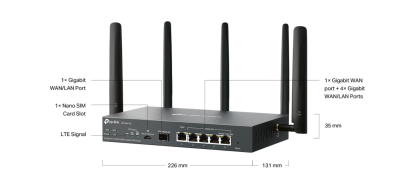

Dimensions (W x D x H)
 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)

Warranty
 3 Years

Datasheet : ER706W-4G Omada 4G+Cat6 AX3000 Gigabit VPN Router
