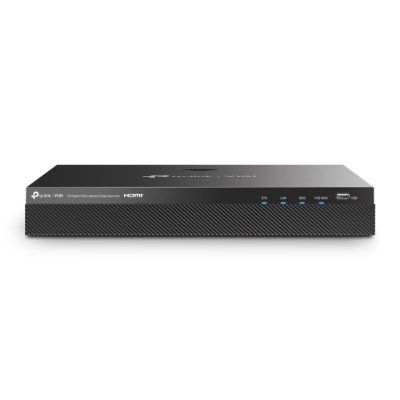

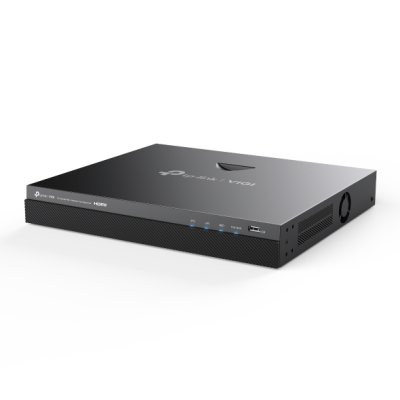

TP-Link VIGI 16 Channel PoE+ Network Video Recorder (NVR2016H-16MP)

Brand
 TP-Link

Description
 TP-Link (NVR2016H-16MP) VIGI 16 Channel PoE+ Network Video Recorder 140W

SKU
 NVR2016H-16MP

Model
 VIGI NVR2016H-16MP

Video Input
 IP Video Input : 16-Channe,

Network
 Incoming Bandwidth 80 Mbps
 Outgoing Bandwidth 60 Mbps

Video Output
 Recording Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

 HDMI/VGA Output Resolution : 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,1280x720/60Hz

 VGA Output Resolution : 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz,1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

 Video Output Mode : HDMI/VGA Simultaneous Output
 Multi-View Display : 1/4/6/8/9/16

Decoding
 Audio Compression : G.711A/G.711U/G.726
 Video Compression : H.265+/H.265/ H.264+/H.264
 Record Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
 Synchronous Playback : 16-Channel

 Capability : 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
                 30fps: 4-ch @ 3MP, 2-ch @ 5MP

Network Management
 Network Protocols : UPnP (Plug and Play), NTP (Network Timing)
 Mobile Phone Access : Android, iOS
 Browser : Chrome (57+), Firefox (52+), Edge (91+)

Hard Disk
 SATA : 2 SATA Interfaces
 Capacity : Up to 10 TB Capacity for Each HDD

External Interface
 Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
 USB Interface : 2 × USB 2.0

PoE Ports
 Interface : 16 × RJ-45 10/100 Mbps PoE Port
 Power : 140W
 Standard : IEEE 802.3 af/at

Power Supply
 DC 53.5V/3.37A

Dimensions
 330 × 285 × 45 mm

Weight
 Net Weight 2.1Kg
 Gross Weight 4.1 Kg

Warranty
 3 Years

Daasheet : 16 Channel PoE+ Network Video Recorder

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*
